Long Range Multifunctional RFID Guard Tour System   WM-5000V8)

System components
1. WM-5000V8 Guard Tour Reader
2. WM-5000T8 Data Downloader
3. Checkpoint Buttons
4. GuardID Keyfobs
5. Event Wallet(Optional)
6. Guard Tour Software

WM-5000V8 is a powerful,super durable guard patrol system. It integrates a high-quality OLED screen that can display working status, store records, ambient temperature, and compass functions. Furthermore, There is also a flashlight function in it, which is convenient for night use.
It is ideal for applications such as Security guard patrolling, Buildings guard daily patrolling,Residential community guards patrolling, Portable Time and Attendance and so on.
Features
Strong and durable, dustproof and waterproof rating is IP67.
It also is a flashlight, night patrolling easier.
Super storage capacity,up to 60,000 records.
Vibration + LED flash prompt working status.
Support 125Khz and 2.4G Reading mode.
High-Quality OLED screen, showing status, records and etc
Long battery life, 30,000 continuous reads for one charge.
Easy operation,Easy maintance
Technical Parameters
WM-5000V8 RFID Guard Tour Reader
Physical Case
Multi-layer structure, aluminum alloy + silicone buffer waterproof layer
Dimensions 144mm * 47mm * 30mm
Weight 243g (8.57oz)
Operating Temp. -40℃~+85℃ ( -40℉~185℉)
Battery 3.7V/1150mAh rechargeable lithium batteries
Reading Mode 125KHz Mode: 3cm-8cm ; or 2.4G mode: 10-30 meters
Inner Storage 60,000 records
Waterproof Rating IP67
Data Transfer WM-5000T8 Data Downloader Transmitting
Prompt Means Vibration + Colorful LED light(Red/ Green/ Blue)

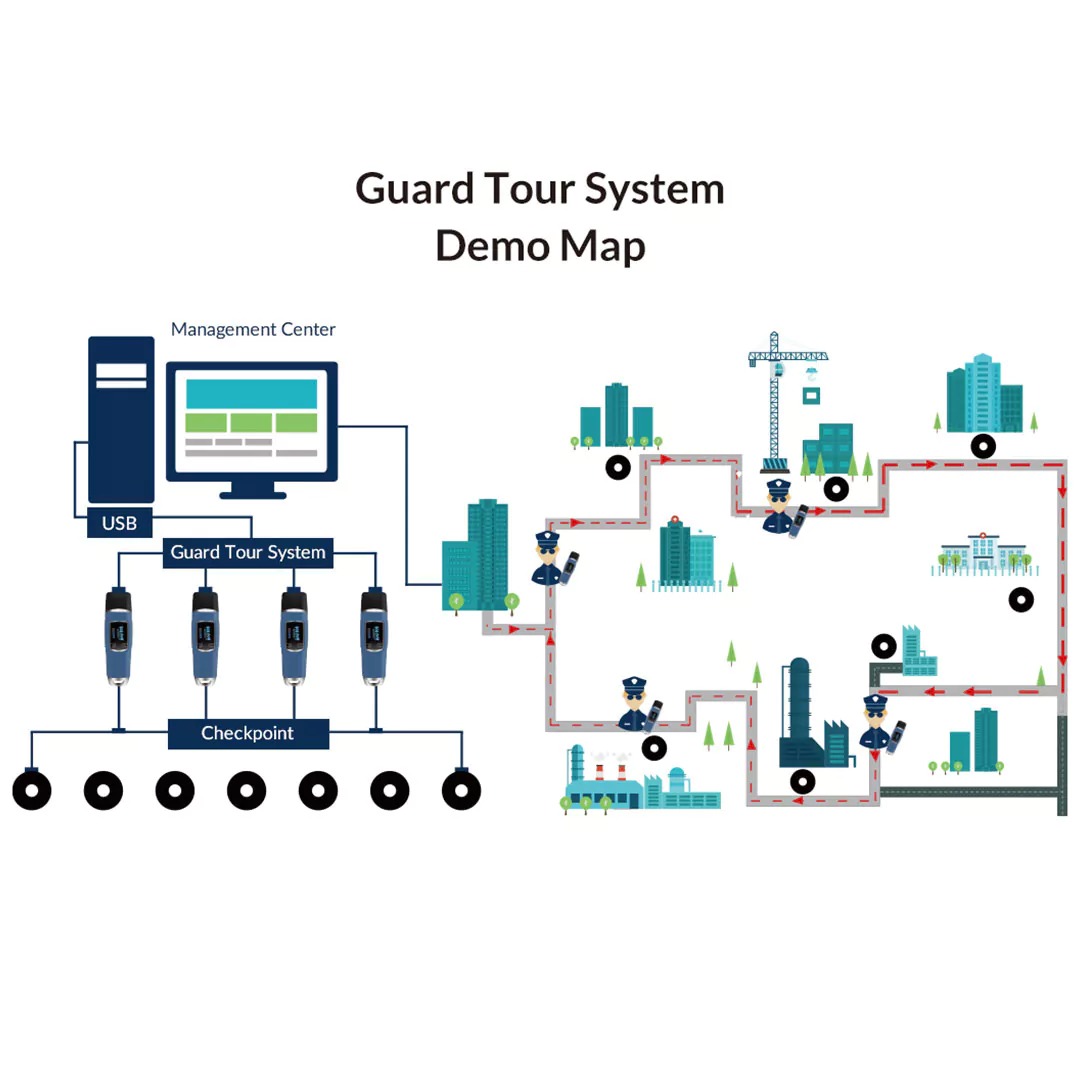

5000V8-Guard-Tour-System-Working-System

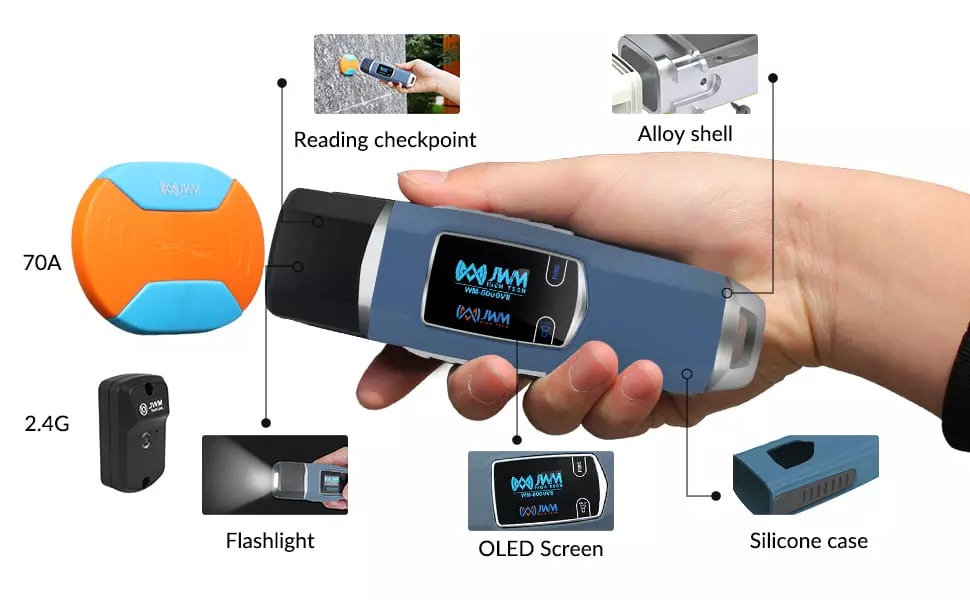

5000V8-Guard-Tour-Reader-Main-Functions

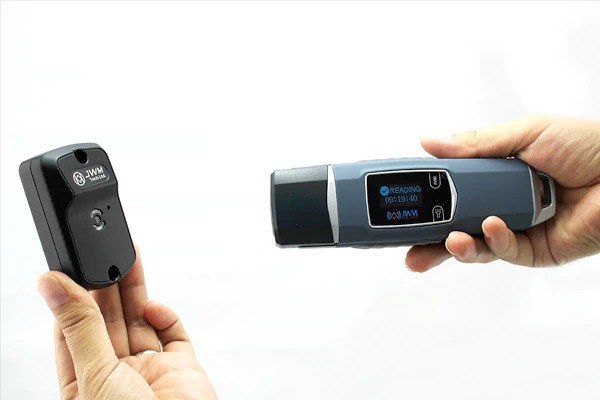

5000V8-Guard-Tour-Reader-and 2.4G-Long-Range-Checkpoints

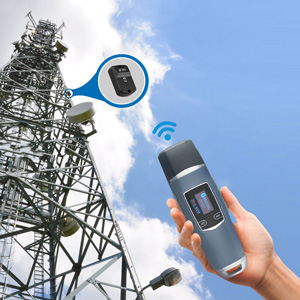

5000V8-Guard-Tour-Reader-Long-Range Reading-30-meters

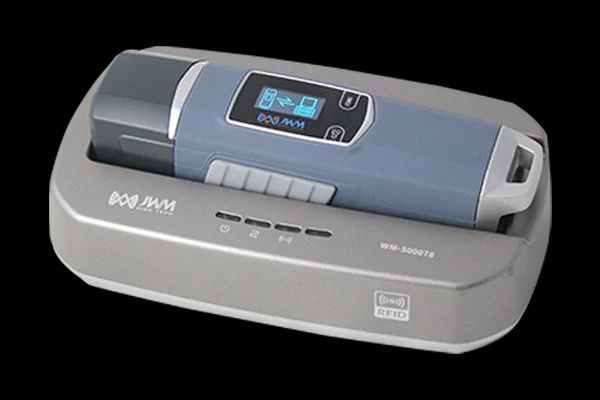

5000V8-Guard-Tour-Reader-in 5000T8-Downloader

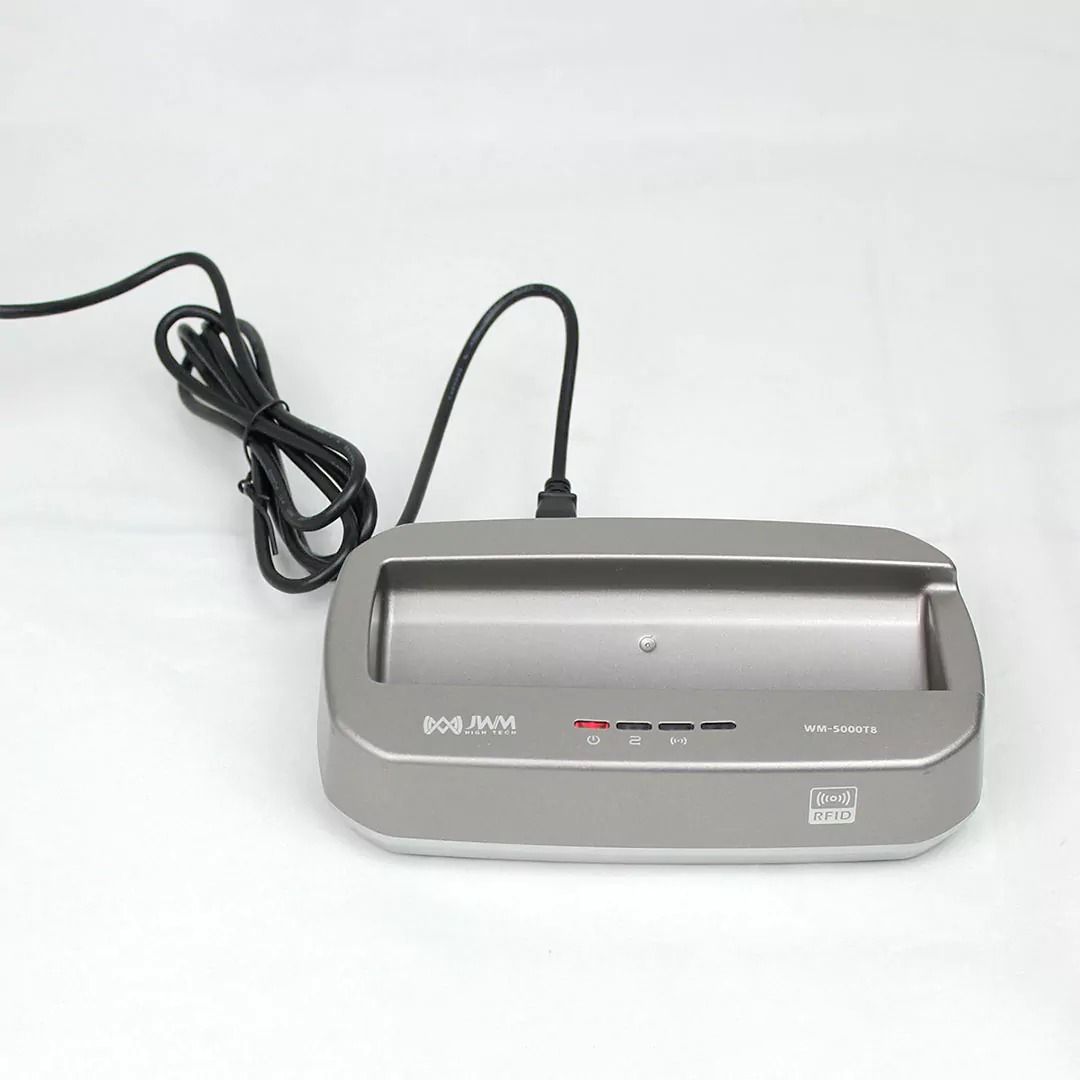

5000V8-Guard-Tour-System-Downloader-5000T8

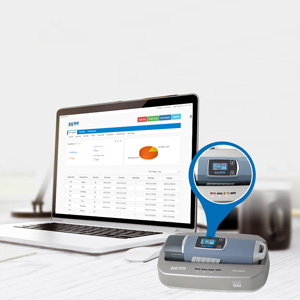

5000V8-Guard-Tour-System-Download-Station

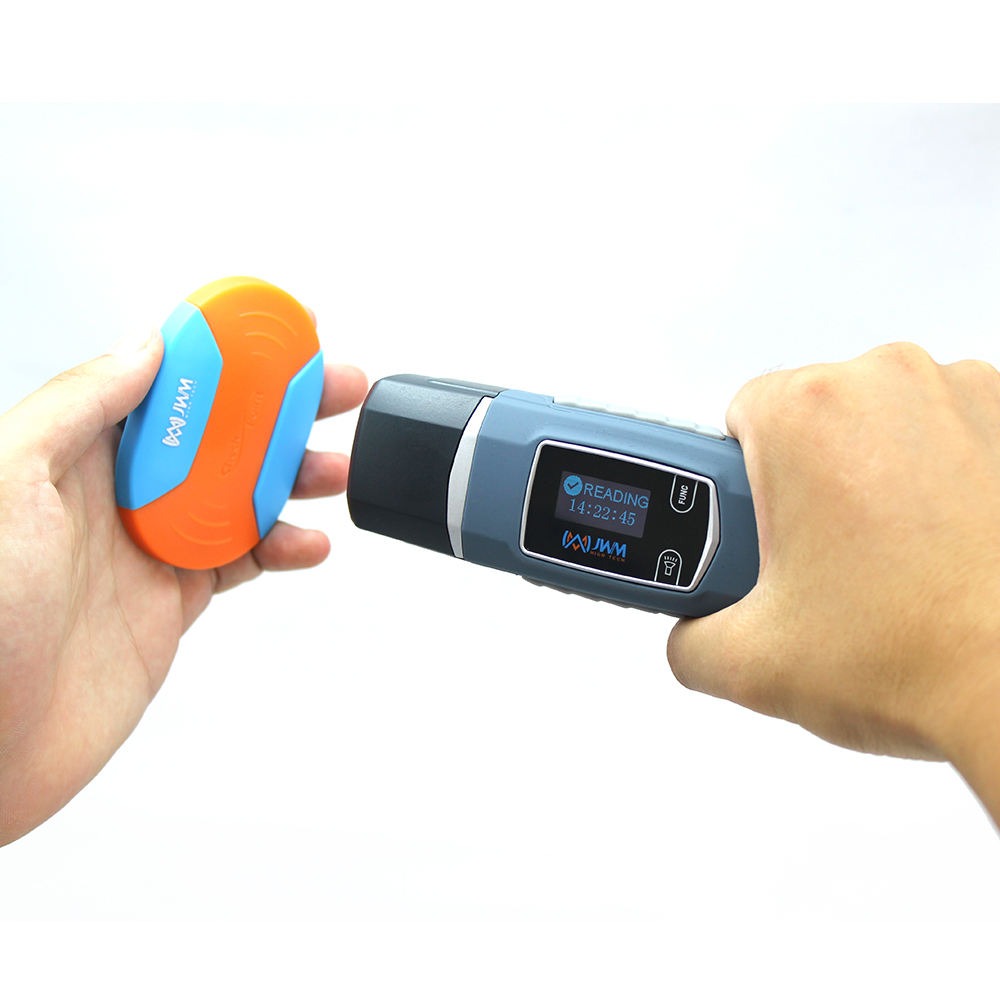

5000V8-Guard-Tour-Reader-Reading-with-Display

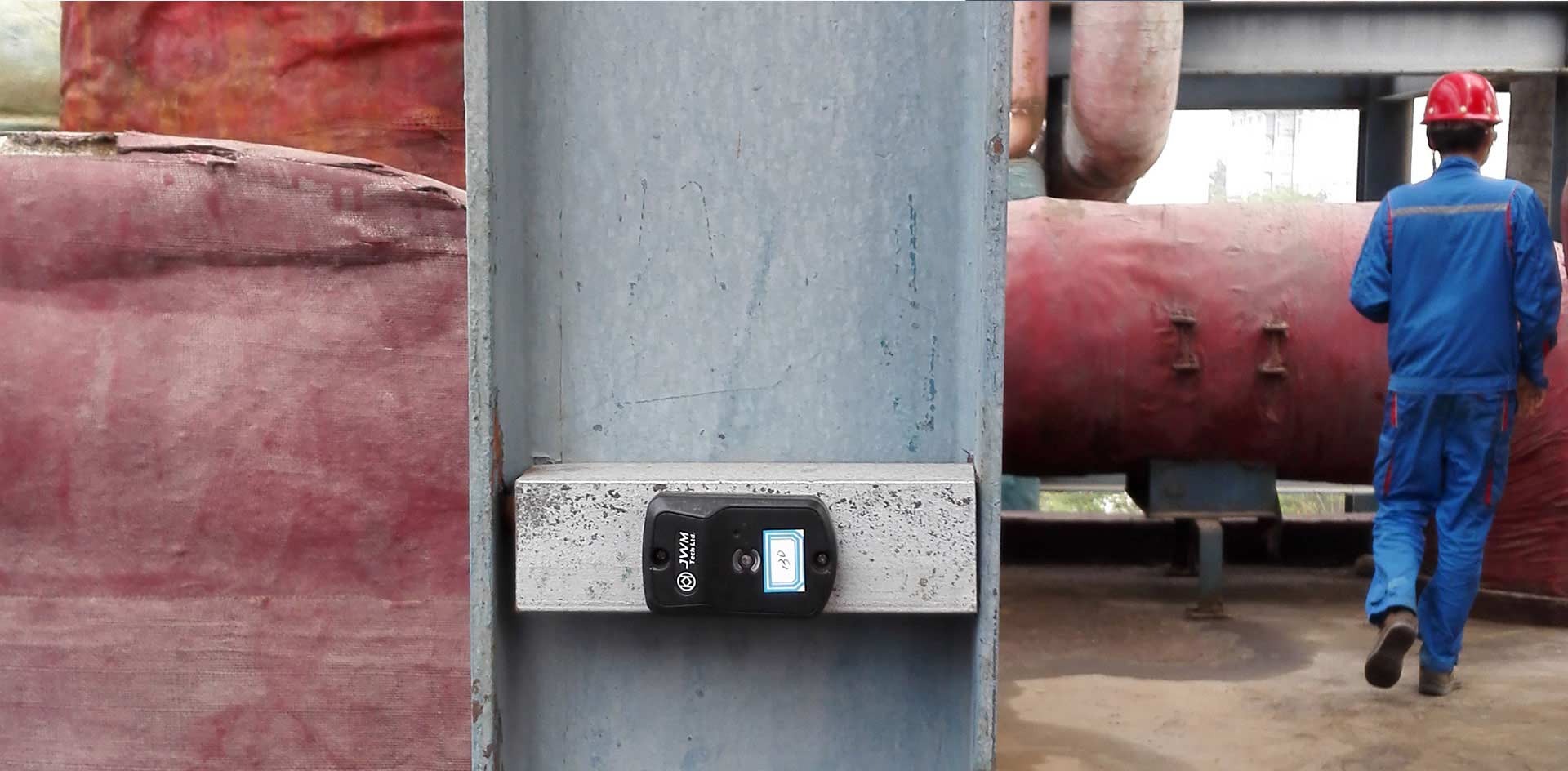

5000V8-Long-Range-2.4G-Checkpoint-Button

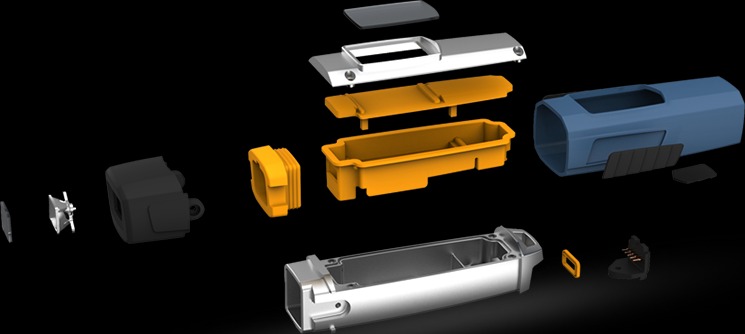

5000V8-Guard-Tour-Reader-Structure

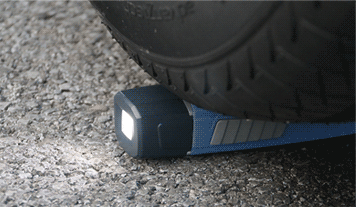

5000V8-Guard-Tour-Reader-Anti-sabotage

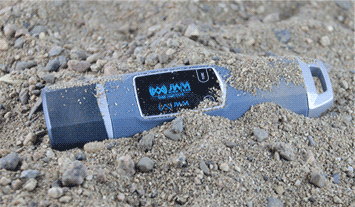

5000V8-Guard-Tour-Reader-Dust-proof

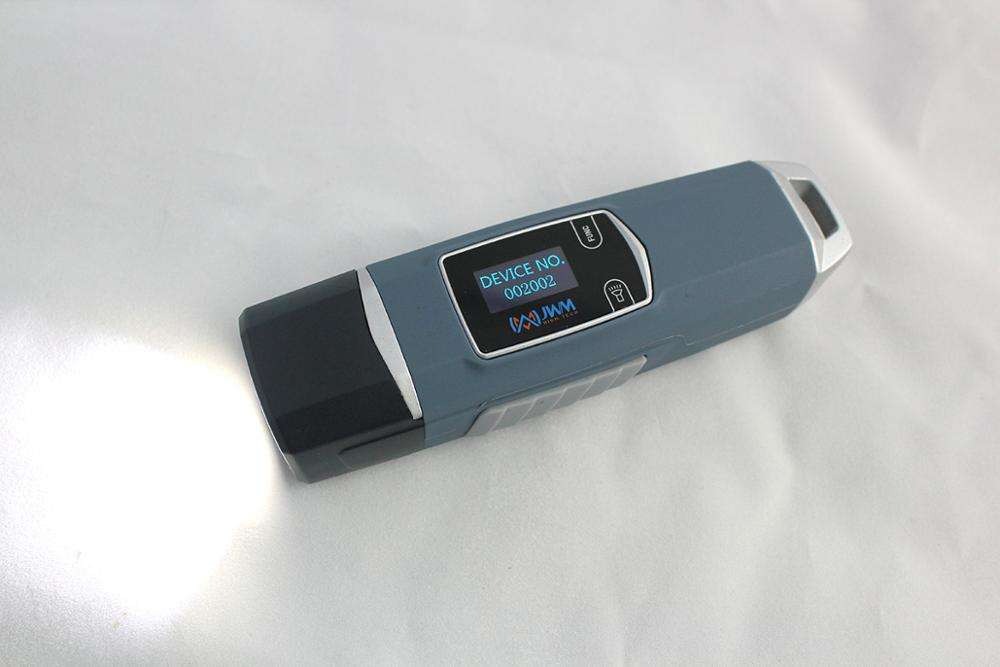

5000V8-Guard-Tour-Reader-with-Flashlight

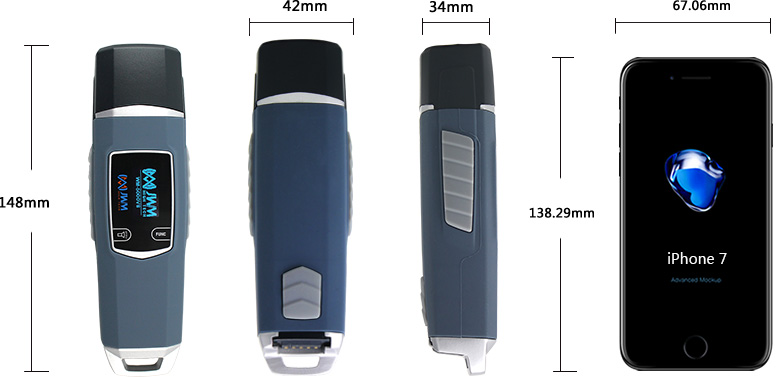

5000V8-Guard-Tour-Reader-Size

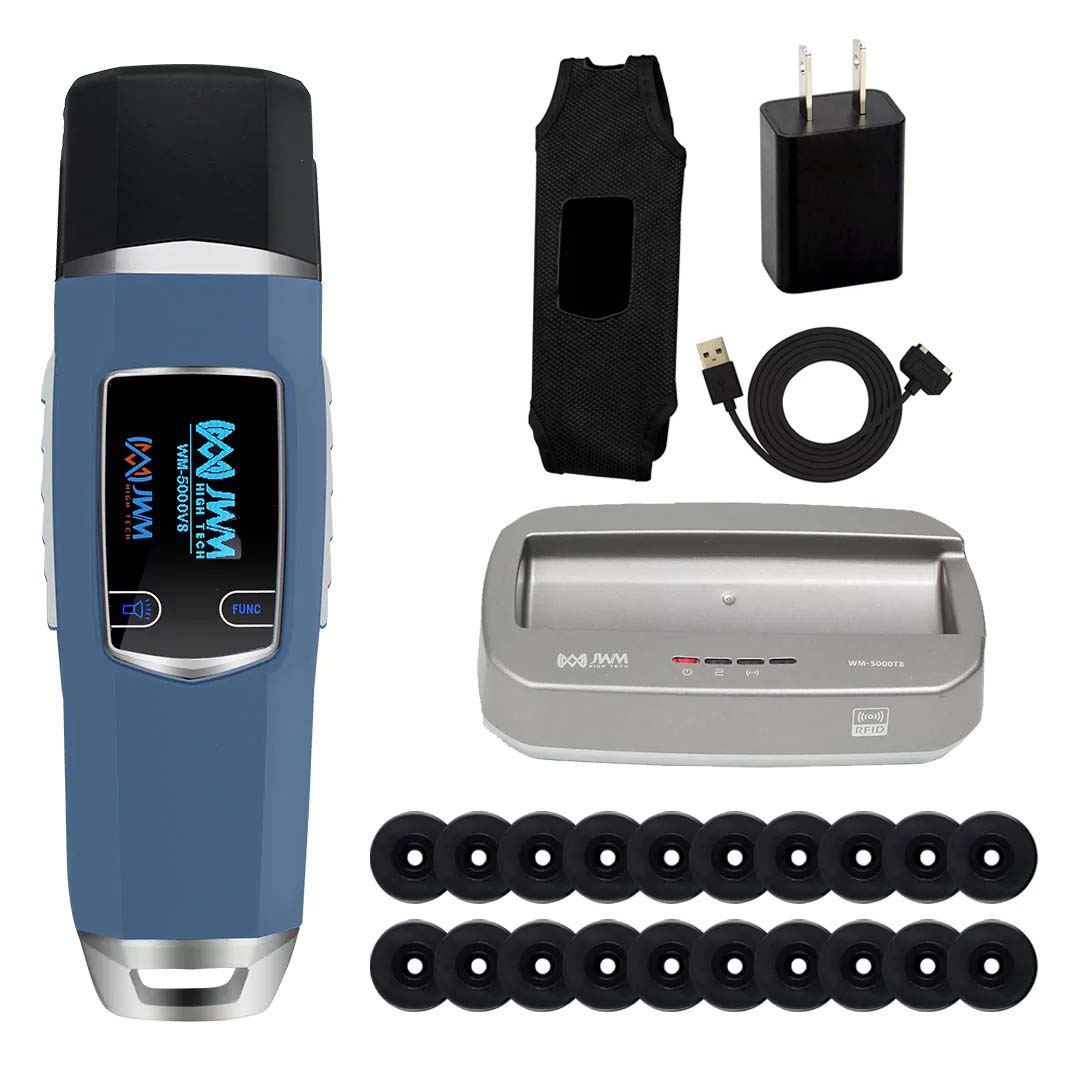

WM-5000V8 StartKit Guard Tour System5000V8-Guard-Tour-System-BasicKit

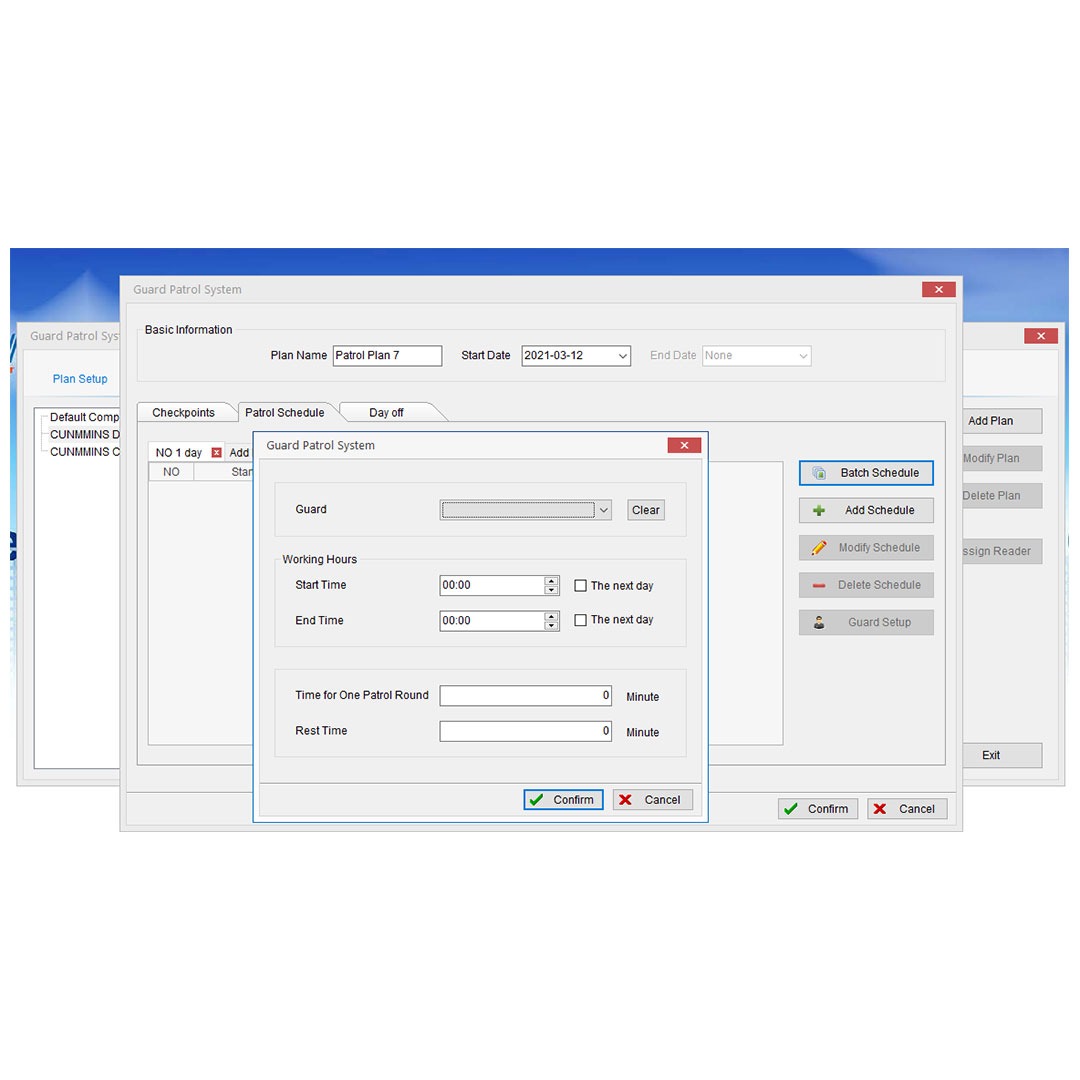

Guard Tour Management Software JWM-guard-tour-management-software
APPLICATION FIELDS 5000V8-Guard-Tour-Reader-Application Fields
