RFID Guard Tour System (WM-5000V5)

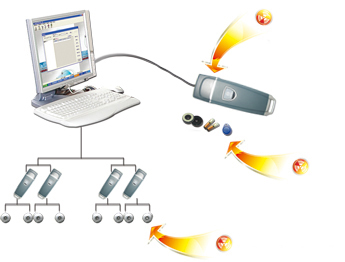

System components
1.WM-5000V5 Guard Tour Reader
2. Data Transmit Cable
3. Checkpoint Buttons
4. GuardID Keyfobs
5. Event Wallet(Optional)
6. Guard Tour Software

WM-5000V5 system is an updating product on the basis of WM-5000V+; it is with POGO Pin connecter instead of the normal USB port, which makes the device more guard proof and waterproof. With special waterproof pad and adhesive, the reader can work in the water without problem; furthermore, 60000 records can be stored before the next download of data.
WM-5000V5 works with RFID tags; with a simple non-contact swipe, the reader can read information from the tags, and then upload all the patrol records to the management software in a computer by a POGO Pin connecting cable; the information reports can demonstrate the guards' patrolling activities.
Features
Silicon tank, metal body with rubber shell outside, super durable
Auto induction card-reading
Military component
IP67 standard
POGO pin connecting cable, high download speed
Non-contact reading of RFID tag
Completely water proof and guard proof
Sabotage absorbent, resistant to electrical shock
Super storage capacity 4Mb Flash, 60000 records
Power off protection
REG colorful LED display
Reading distance: 3-8 cm
Technical Information
WM-5000V5 Guard Tour Reader
Dimensions
144mm*47mm*30mm
Working Frequency 125KHz
Operating Temp. -40℃~+85℃ ( -40℉~185℉)
Memory 4Mb Flash ROM
Storage Capacity 60000 pieces records
Humidity 10% to 98% non-condensing
Battery 3.7 V recharge Lithium Battery,
Waterproof Rating IP67
Reading Distance 3cm-8cm
Communication POGO pin connecting cable 57600 BPS, 4000 records per minute
Weight 227g


Features
RFID tags are constructed to withstand intentional sabotages, which can be read from long distances(0-12cm) and operated in wide temperature ranges. They are also completely waterproof, and can be sealed inside non-metalic material walls; Button, circle, keyring, nail and cylinder-shaped cards used as guard tour checkpoints. These can be installed either on or beneath wall surfaces; Key chain-attachable type personnel / incident card used to identify patrol personnel or events and incidents. Its working frequency is 125KHz.
Technical Information
Checkpoint Buttons
Physical
Water-resistant ant, ASB plastic case
Shape Nail, button, circle, keyring and cylinder shape, etc.
Weight About 2 g
Operating Temp. -25℃ - +85℃
Working Frequency 125KHz
Battery None
Reading Distance 3-8cm
USB communication cable
This cable can be used to connect between the reader and PC, which is according with DY/T1019, IEC61156, ANSI/EIA/TIA-568 standard.
WM-5000V5 Guard Tour System quickly starting guide
1. The patrolling guard takes the reader and read his own Guard ID to identify himself with the system
2. Then the guards go to the checkpoints, the Reader will automatically read each checkpoint button(no need touch it). When reading successfully, a LED flash and vibration promt means that a reading sucessfully. The WM-5000V5 will store the checkpoint button's ID number and reading time for every station reading.
3. After patrolling are done, use the USB port cable to connect the computer and the Reader directly and have a data analysis and management..
