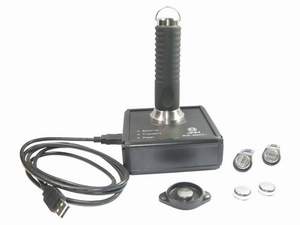

1. WM-5000E Guard Tour Reader
2. Leather holster (optional)
3. Data Downloader
4. iButtons-Checkpoints
5. Plastic holder (for the iButtons)
6. Guard ID keyfob
7. Event wallet (optional)
8. Guard Tour Software
complete
waterproof
WM-5000E guard tour system is a very popular guard tour product
in security products market. Small-sized, durability, and low
power consumption are its biggest advantages. With
unique design and special adhesive, WM-5000E
reader is total waterproof. The unique design that
there is not any screw on the surface makes it
super durable. One 3V lithium battery can read
buttons 350 000 times continuously. If you need a
dependable, tamper-proof data collection system,
WM-5000E system is the obvious choice.
Features
Durable stainless steel case with rubber outer
Shell, super durability
Brilliant exterior design, small-sized, light and easy
carrying,
With special waterproof pad and adhesive in the reader,
completely water resistant
No screws on surface, sabotage resistant
Shock proof and easy maintenance
LED flash prompt at the touch of the button
Real time internal clock
7,200 records storage capacity
Low power consumption
Long battery life, 350,000 continuous reads
Technical Information
WM-5000E iButton Reader
Physical
Durable stainless steel
case with rubber outer shell
Dimensions
113mmx28mm
Weight
140g
Operating
Temp.
-40℃~+85℃ ( -40℉~185℉)
Working
Humidity
5% to 95% non-condensing
Memory
Size
512KB EPPROM
Storage
Capacity
7,200 records
Power
Supply
3.0 V Lithium
Battery(CR123A), 350000 continuous reads
Communication
USB port downloader
station
Prompt
Means
LED flash prompt
Features-iButtons for Checkpoints and GuardID keyfobs
iButtons-Touch Memory Buttons are electronic memory chips
contained in small water-resistant,water-resistant
stainless steel canister. All Touch Memory Buttons
(TM card, iButton) contain a unique ID number that
is unalterable and identifies each button. Touch
Memory Button's stainless steel container
protects the memory chip and provides an
electrical path for communication with the
WM-5000E reader. The top of button is connected to
the enclosed memory chip circuit, and the bottom
and sides provide a signal ground. When you touch
a button with the WM-5000E guard tour reader, an electrical
connection is established data is transferred
instaneously. You can attach buttons to virtually
anything by using permanent adhesive pads,
mounting brackets, or key ring tabs.
Features-WM-5000T+ Data Downloader
WM-5000T+ downloader provides the communications
between WM-5000E reader and the computer. With
available communication speed of up to 19,200 baud
read, downloading a WM-5000E reader to your
computer takes only a few seconds.
Technical Information
WM-5000T+ Data Downloader
Dimensions
102mm*102mm*42mm
Weight
7.4 ounces (210g)
Power Supply
USB port from PC.
Indicator Lights
Power, Transmit, and Receive
Connection Ports
USB to Computer
WM-5000E Guard Tour System quick starting guide
1. The patrolling guard takes the reader and touches his
own Guard ID to identify himself with the system.
2. The guard will then proceed to the designated stations
and touch the installed station iButtons accordingly. The
data and time will be recorded in the reader for every
station touching.
3. After patrolling, the guard will hand it over to the
supervisor who will upload patrolling data to software via
downloader station and have a data analysis and
management.
