Multifunctional Guard Tour System (WM-5000V4)

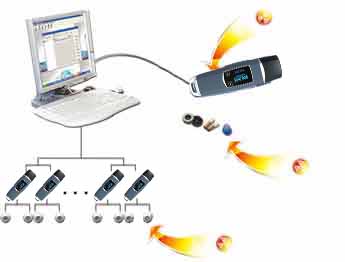

System components
1. WM-5000V4 Guard Tour Reader
2. Data Transmit Cable
3. Checkpoint Buttons
4. GuardID Keyfobs
5. Event Wallet(Optional)
6. Guard Tour Software

WM-5000V4 is a powerful,super durable guard patrol system. It integrates a high-quality OLED screen that can display working status, store records, ambient temperature, and compass functions. Furthermore, There is also a flashlight function in it, which is convenient for night use.
It is ideal for applications such as Security guard patrolling, Buildings guard daily patrolling,Residential community guards patrolling, Portable Time and Attendance and so on.
Features
Strong and durable, dustproof and waterproof rating is IP67.
It also is a flashlight, night patrolling easier.
Super storage capacity,up to 60,000 records.
Vibration + LED flash prompt working status.
Support RFID 125Khz, scanning distance:3cm-8cm .
High-Quality OLED screen, showing status, records and etc
Long battery life, 30,000 continuous reads for one charge.
Easy operation,Easy maintance
Technical Parameters
WM-5000V4 RFID Guard Tour Reader
Physical Case
Multi-layer structure, aluminum alloy + silicone buffer waterproof layer
Dimensions 144mm * 47mm * 30mm
Weight 243g (8.57oz)
Operating Temp. -40℃~+85℃ ( -40℉~185℉)
Battery 3.7V/1150mAh rechargeable lithium batteries
Reading Mode RFID 125KHz; Reading distance 3cm - 8cm
Inner Storage 60,000 records
Waterproof Rating IP67
Data Transfer Magnetic USB(Drive-Free); 15000 records/min
Prompt Means Vibration with Colorful LED light(Red/ Green/ Blue)

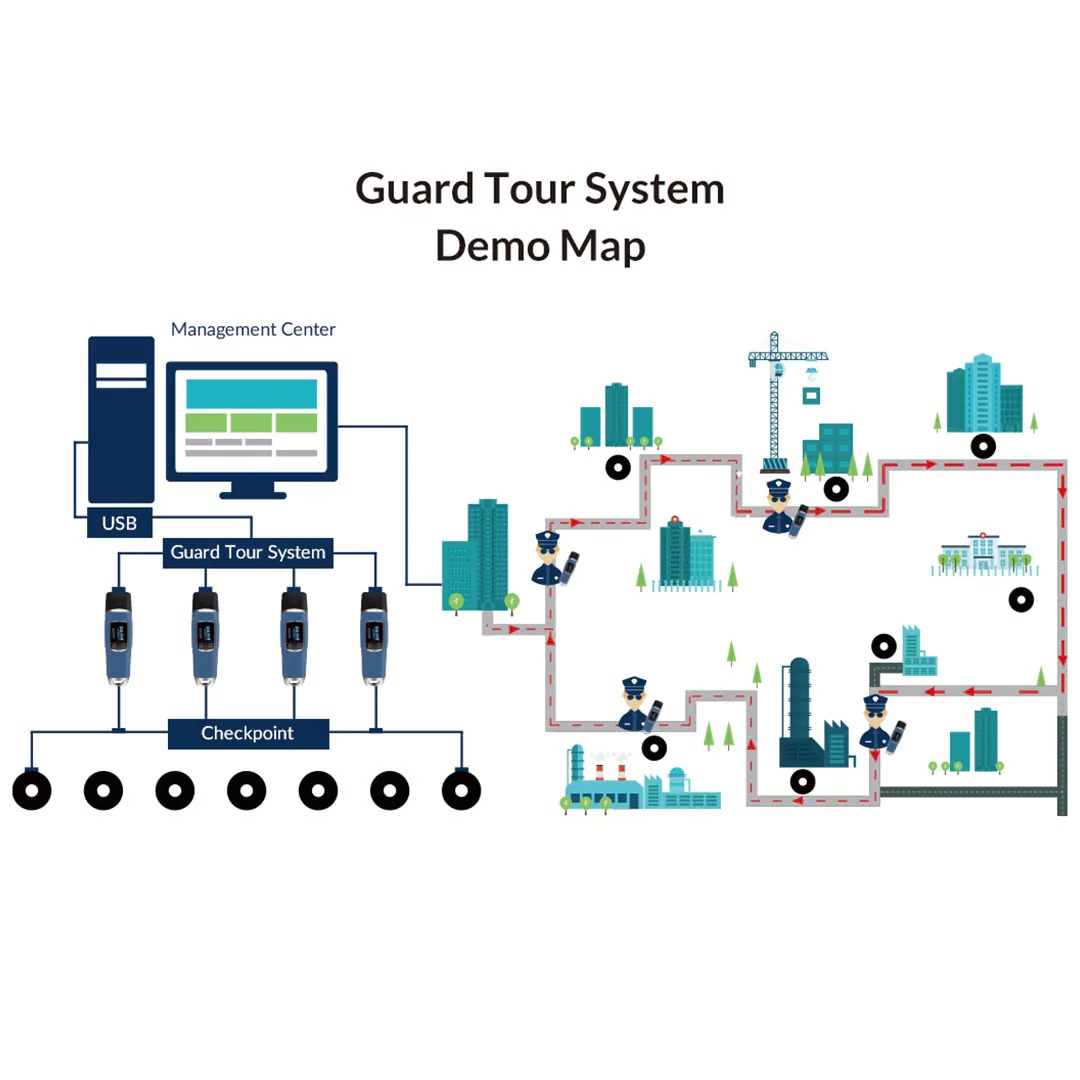

5000V4-Guard-Tour-System-How to Working

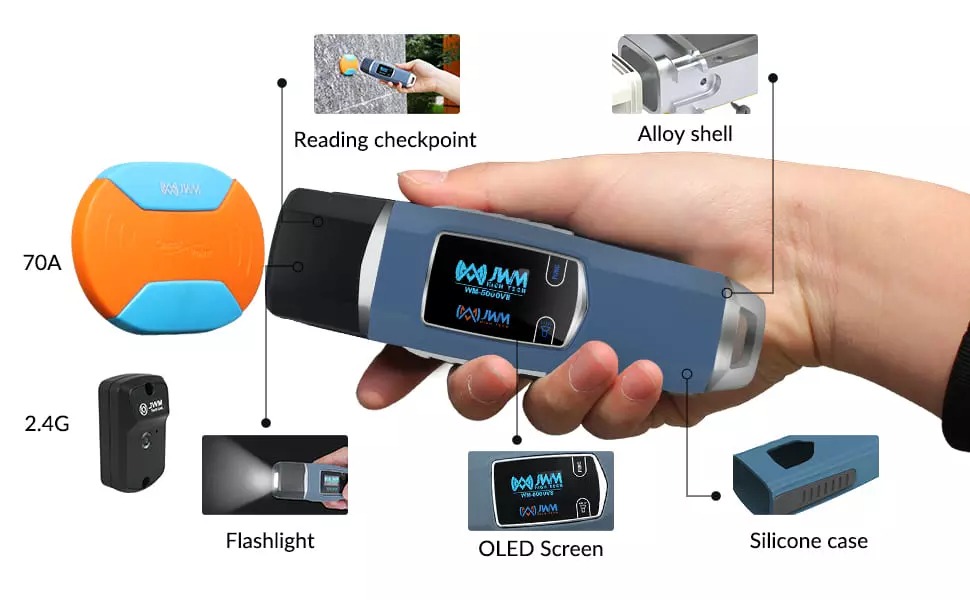

5000V4-Guard-Tour-System-main-Functions

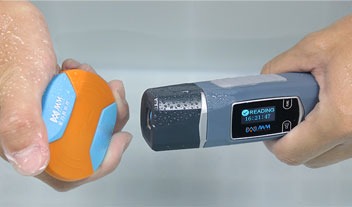

5000V4-Guard-Tour-System-Reading

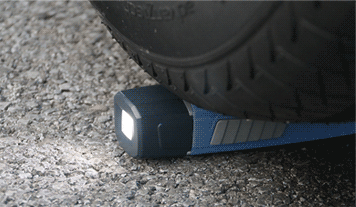

5000V4-Guard-Tour-System-super-Robust

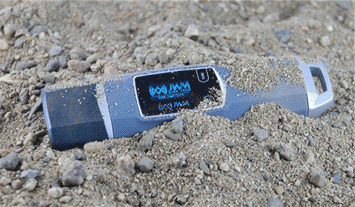

images/5000V4-Guard-Tour-System/5000V4-Guard-Tour-System-Dust-Proof

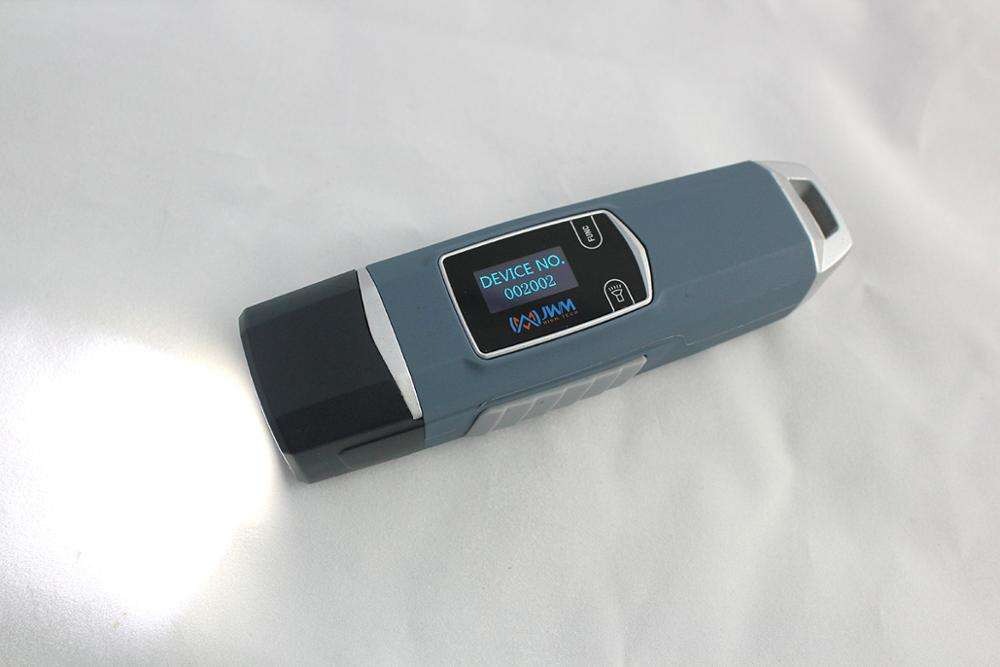

5000V4-Guard-Tour-System-Flashlight

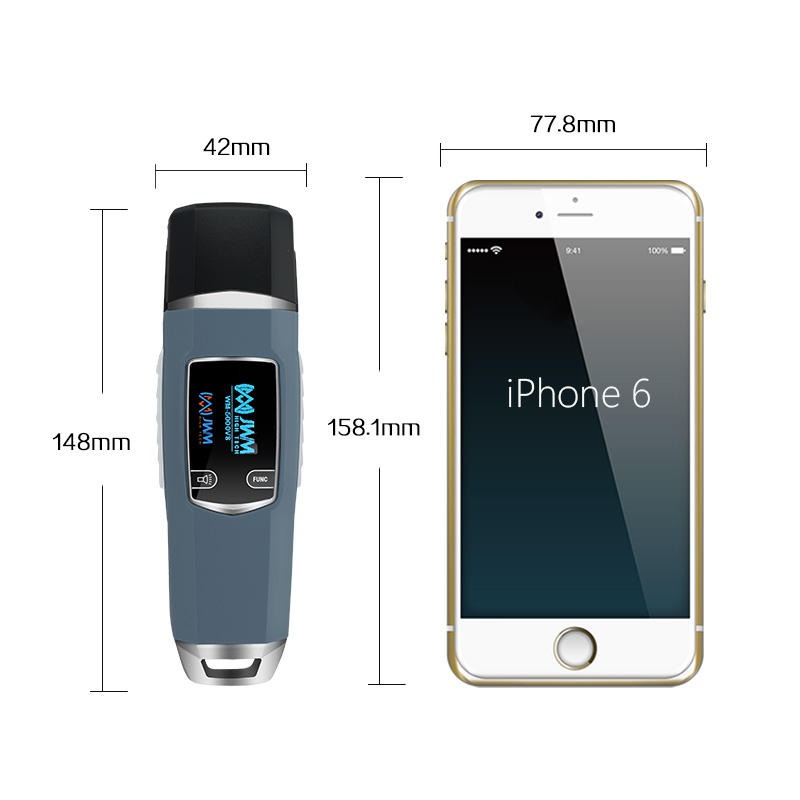

5000V4-Guard-Tour-System-Size

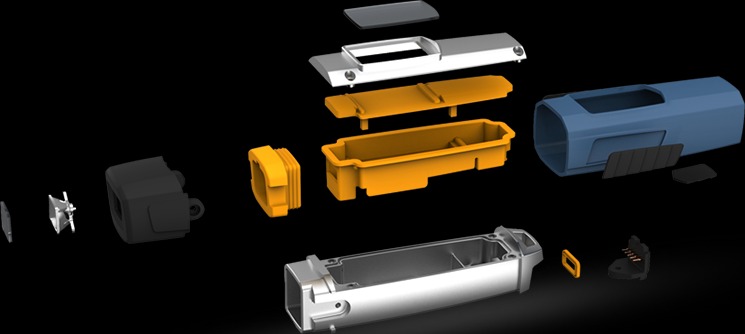

5000V4-Guard-Tour-System-Physical Case

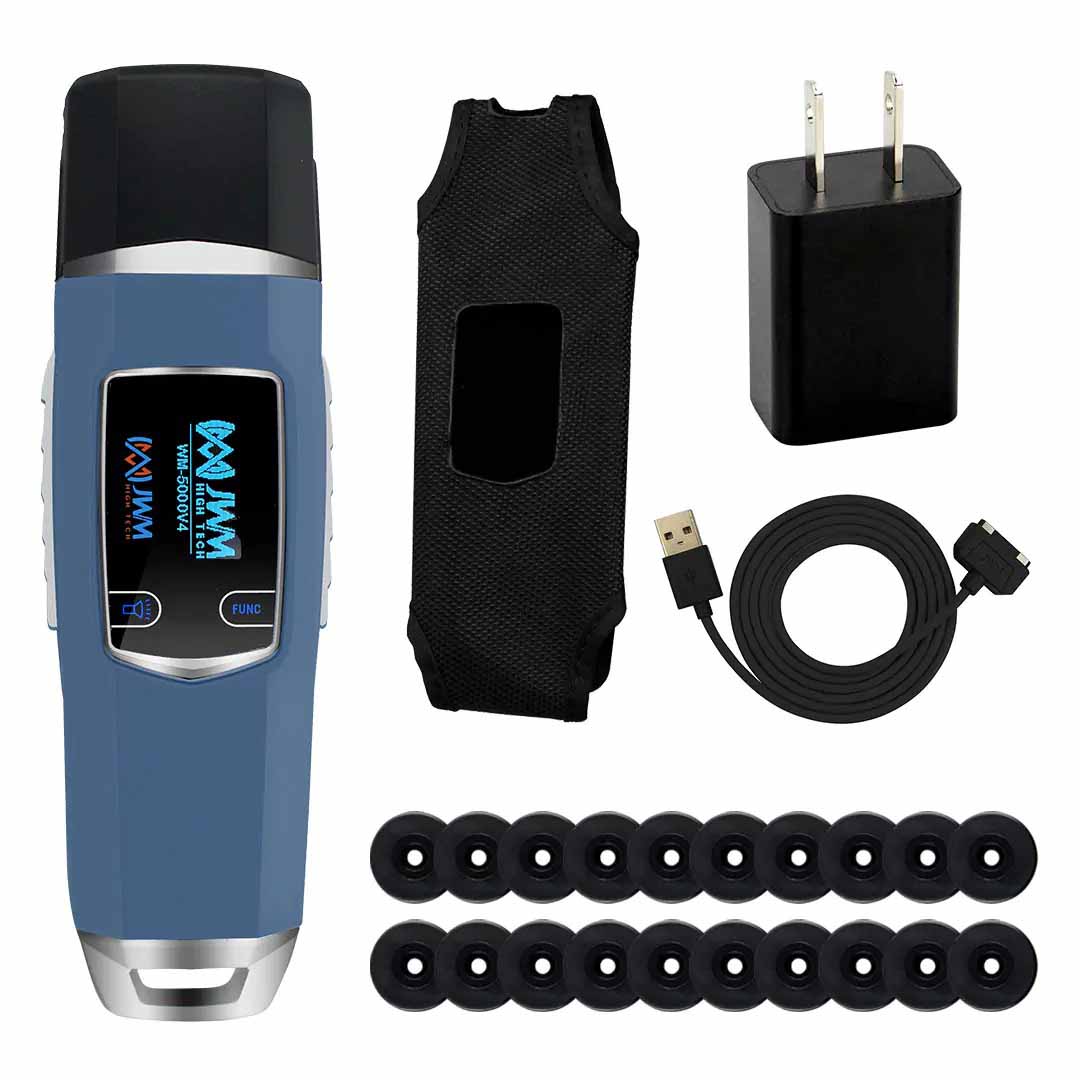

JWM-5000V4-Guard-Tour-System-Set-included
5000V4-Guard-Tour-System-application
